MB/Forklift-10K-Cat TH 1055

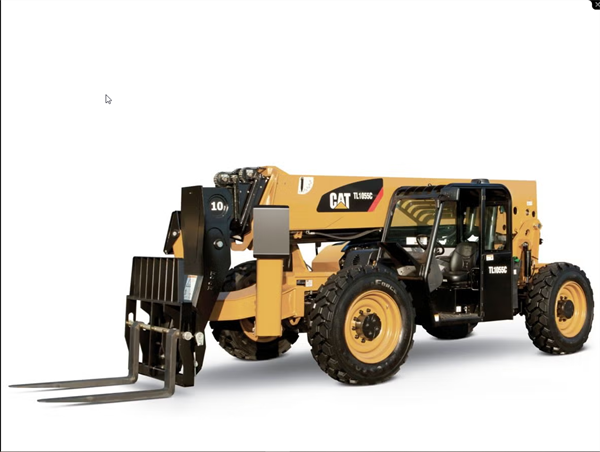

The Cat TH1055 is a heavy-duty telehandler featuring a maximum lift capacity of 10,000 lbs, maximum lift height of 54.6 ft , and a maximum forward reach of 41ft

Start date: *

End date: *

Daily :	$575.00
Weekly :	$1,999.00
Monthly :	$3,999.00

Qty:

i h

Specifications

The Cat TH1055 is a heavy-duty telehandler featuring a maximum lift capacity of 10,000 lbs, a maximum lift height of 54.6 ft , and a maximum forward reach of 41 ft .

Key Specifications

Specification	Value
Rated Load Capacity	10,000 lbs (4,536 kg)
Max Lift Height	54.6 ft (16.6 m)
Max Forward Reach	41 ft (12.5 m)
Operating Weight	29,838 lbs (13,534 kg)
Engine Options	Cat C3.6 (74 hp or 115 hp)
Max Speed (Forward)	18 mph (30 km/h)
Max Lift Capacity @ Full Height	5,000 lbs (2,268 kg)
Max Lift Capacity @ Full Reach	3,000 lbs (1,361 kg)

Dimensions

Overall Length to Front of Carriage: 252 in
Overall Width (Standard Tires): 97 in
Wheelbase: 131 in
Ground Clearance: 18 in
Turning Radius (4-wheel steer): 157 in

Hydraulic System

Auxiliary Hydraulic Pressure: 4,061 psi (280 bar)
Auxiliary Hydraulic Flow: 14.5 gpm (55 L/min)
Maximum Pump Flow: 37 gpm (141 L/min)
